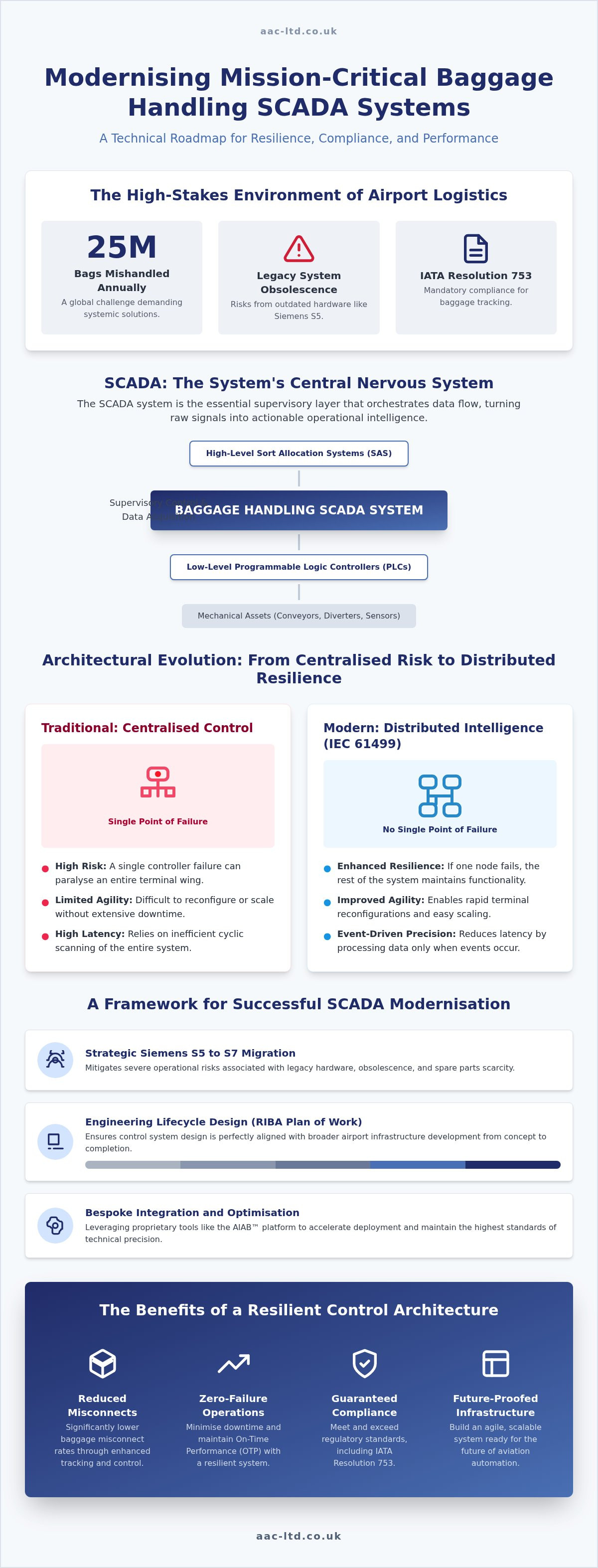

Optimising Baggage Handling SCADA System Performance: An Engineering Guide

With 25 million bags mishandled annually across global aviation hubs, the margin for error in airport logistics has effectively vanished, leaving no room for systemic instability. You likely understand the mounting pressure of maintaining a legacy baggage handling SCADA system whilst facing the reality of Siemens S5 obsolescence and the necessity of IATA Resolution 753 compliance. It’s a high-stakes environment where a single hardware failure or a lack of visibility across complex conveyor networks can lead to cascading operational downtime. This engineering guide offers a comprehensive roadmap for SCADA modernisation, promising to transform your control architecture from a source of risk into a resilient, high-performance asset.

We’ll explore how to design, migrate, and optimise your mission-critical systems using rigorous RIBA frameworks and the IEC 61499 standard. By following this technical guide, you’ll gain the strategic insight required to integrate sophisticated software with existing mechanical assets, ensuring zero-failure operations and significantly reduced baggage misconnect rates for your facility. Through a methodical approach to system integration, we’ll demonstrate how to future-proof your infrastructure against the challenges of an increasingly automated industry.

The Central Nervous System: Defining Baggage Handling SCADA Systems

A baggage handling system is a complex web of mechanical assets, yet its operational success depends entirely on the digital architecture governing it. The baggage handling SCADA system functions as the essential supervisory layer, orchestrating the flow of data between low-level Programmable Logic Controllers (PLCs) and high-level Sort Allocation Systems (SAS). Whilst the PLCs manage the immediate physical execution of motor starts and diverter pulses, the SCADA provides the contextual intelligence necessary to translate these mechanical movements into actionable operational data. It’s the bridge that turns raw electrical signals into a coherent picture of terminal health.

Moving beyond passive monitoring is vital. Modern aviation environments demand a transition to proactive operational intelligence. Real-time visibility isn’t merely a luxury; it’s a fundamental requirement for meeting IATA Resolution 753 standards and reducing the global rate of mishandled bags. By providing a unified view of the terminal’s performance, a robust SCADA platform allows engineers to identify throughput bottlenecks before they result in flight delays or missed connections. System failure is not an option.

Core Components of an Airport BHS SCADA

The efficacy of the system relies on several integrated elements that work in concert to maintain terminal throughput. High-performance Human-Machine Interfaces (HMIs) offer operators a precise, real-time visualisation of the conveyor network, enabling them to pinpoint the exact location of any bag within the system. This is supported by rapid data acquisition from thousands of I/O points, ensuring that every sensor pulse and motor state is captured. Effective alarm management and event logging are also critical, as they allow for immediate fault rectification and the identification of recurring mechanical issues that might otherwise lead to systemic failure.

The High Stakes of System Failure

In major aviation hubs, even a brief period of BHS downtime can incur staggering financial and reputational costs. When the SCADA layer fails, the lack of visibility often forces a total cessation of baggage induction to prevent physical jams, directly impacting an airline’s On-Time Performance (OTP). Beyond the immediate logistical chaos, the long-term erosion of passenger trust and the potential for regulatory fines create a compelling case for investment in resilient control architectures. A baggage handling SCADA system is a mission-critical asset that serves as the cornerstone of airport operational technology, ensuring the continuous and secure movement of passenger property across the global aviation network.

Architectural Excellence: Leveraging IEC 61499 for BHS Resilience

The aviation industry is witnessing a fundamental shift in how control logic is deployed across the terminal. Traditional baggage handling SCADA system architectures often rely on a centralised PLC-centric model, which creates inherent vulnerabilities and limits the agility of the terminal’s mechanical assets. Transitioning to a distributed control model via the IEC/BS 61499 standard allows for a more resilient, software-centric approach. This standard does not merely replace established methodologies; it enhances them by introducing event-driven execution that responds to real-time operational shifts with heightened precision.

Distributed Intelligence vs. Centralised Control

Moving away from a single central point in a baggage handling network is essential for modern risk mitigation. In a centralised system, a single controller failure can paralyse an entire terminal wing, leading to immediate operational gridlock. Distributed intelligence spreads decision-making across the network; if one node fails, the remaining system maintains functionality. This architecture improves agility, allowing for rapid terminal reconfigurations without the need for extensive downtime or massive rewrites of core code. Event-driven execution ensures the system only processes data when specific events occur, significantly reducing the latency inherent in traditional cyclic scanning.

Schneider Electric EAE Integration

The deployment of Schneider Electric EcoStruxure Automation Expert (EAE) represents a paradigm shift in airport operational technology. As a Schneider Electric EAE Master Partner, we deliver hardware-agnostic solutions that bridge the divide between Information Technology (IT) and Operational Technology (OT). This software-defined approach future-proofs infrastructure against proprietary hardware lock-in, providing scalability that traditional systems cannot match. Whilst many hubs are currently planning a Siemens S5 to S7 Migration, forward-thinking hubs are simultaneously integrating IEC 61499 to ensure hardware remains flexible for decades.

By decoupling control software from physical hardware, engineers gain the freedom to upgrade components without re-engineering the entire supervisory layer. This level of foresight is a hallmark of principled automation engineering consultancy, where the focus remains on long-term systemic stability rather than short-term fixes. Adopting open standards ensures that your baggage handling SCADA system can evolve alongside emerging AI technologies without the friction of legacy constraints.

Mitigating Obsolescence: Strategic Siemens S5 to S7 Migration

The Siemens S5 platform reached its definitive end-of-life on 30 September 2020, with the manufacturer officially ceasing spare parts provision and repair services the following day. For any facility still operating a legacy baggage handling SCADA system on this hardware, the risk of a catastrophic, unrecoverable failure increases with every operational cycle. Whilst some hubs attempt to extend system life through “patching” with secondary-market components, this remains a high-risk strategy that ignores the underlying fragility of aging silicon and proprietary communication protocols. A strategic migration to the SIMATIC S7 family is no longer a discretionary upgrade; it’s a prerequisite for operational continuity and safety.

Choosing between a phased migration and a “Big Bang” replacement requires a nuanced understanding of terminal throughput and windowed maintenance access. In live aviation environments, a phased approach often proves superior, allowing engineers to upgrade individual conveyor segments or sortation loops during night-time curfews. This methodology minimises the risk of terminal-wide disruption whilst allowing for incremental validation of the new control logic. It provides a “safe pair of hands” approach to modernisation, ensuring that each stage is fully verified before the next begins.

The S5 to S7 Migration Roadmap

A successful transition begins with a comprehensive audit of the legacy STEP 5 code, which often contains decades of bespoke “workarounds” that must be carefully translated into the modern TIA Portal environment. Hardware replacement strategies must be meticulously planned to ensure that new S7-1500 controllers integrate seamlessly with existing fieldbus networks and mechanical actuators. Rigorous testing protocols, including hardware-in-the-loop (HIL) simulation, are essential to guarantee that cutovers occur without impacting the morning’s first wave of departures. This disciplined approach ensures that the migration is an evolution of capability rather than a disruptive event.

Obsolescence Management as a Strategic Advantage

Rather than viewing migration as a mere cost centre, forward-thinking operators treat it as an opportunity for profound system optimisation. Modern Siemens TIA Portal integration provides vastly superior diagnostic capabilities, allowing maintenance teams to identify pending mechanical failures before they trigger a SCADA alarm. This transition ensures long-term supportability for the next 15 to 20 years, providing a stable foundation for future software-defined automation. By aligning obsolescence management with strategic goals, airports can transform a legacy burden into a high-performance baggage handling SCADA system that supports increased passenger volumes and stricter tracking mandates. Engaging a specialist systems integrator in aviation infrastructure ensures that these complex migrations are executed with the technical rigour and RIBA-aligned project discipline that mission-critical aviation infrastructure demands.

The Engineering Lifecycle: Designing SCADA from RIBA Stage 1 to 5

The successful delivery of a baggage handling SCADA system hinges on its early integration into the wider airport construction programme. Adopting a structured design framework, such as the RIBA Plan of Work 2020, ensures that automation engineering is aligned with architectural and mechanical milestones from the outset. Early engagement at RIBA Stages 1 and 2, Strategic Definition and Preparation, prevents the costly late-stage re-engineering that often plagues complex terminal builds. By defining the supervisory layer’s boundaries whilst the mechanical layouts are still fluid, consultants can identify potential throughput bottlenecks before a single motor is commissioned.

Moving through these stages provides a disciplined mind-set for project delivery. It ensures that the digital backbone of the terminal is not treated as an isolated software package but as an integral part of the airport’s infrastructure. This lifecycle approach guarantees that the final control architecture is both scalable and maintainable for the duration of its operational life.

RIBA Stages 1-3: Strategic Definition and Design

During these initial phases, the focus remains on defining operational requirements and establishing the SCADA system boundaries. A robust User Requirement Specification (URS) is developed to act as the bedrock for all future engineering decisions. Feasibility studies conducted at this point evaluate how new terminal builds will interface with existing baggage networks, specifically addressing legacy integration challenges. By establishing clear design intent during the Concept and Spatial Coordination stages, we ensure that the control systems can support the projected passenger growth and security mandates of the next decade.

RIBA Stages 4-5: Technical Design and Commissioning

As the project transitions into Technical Design and Manufacturing, the conceptual models are translated into detailed software engineering and bespoke SCADA configurations. This stage requires meticulous attention to detail, particularly during Factory Acceptance Testing (FAT), where the control logic is stress-tested in a virtual environment before arriving on-site. Once the physical installation begins, Site Acceptance Testing (SAT) protocols verify that the baggage handling SCADA system performs reliably under real-world load conditions. The lifecycle concludes with comprehensive handover and Operational Readiness and Airport Transfer (ORAT) support, ensuring that terminal staff are fully trained to manage the new system from day one.

If you’re planning a terminal expansion or a system overhaul, our automation engineering consultancy provides the technical oversight required to navigate these complex RIBA stages with confidence.

Bespoke Integration: Optimising BHS Performance with AAC

At AAC LTD | All About Control, we operate on the fundamental principle that mission-critical environments require more than off-the-shelf software; they demand a dedicated engineering philosophy rooted in technical precision. Whilst generic vendors often promote standardised solutions that fail to account for the unique mechanical nuances of a specific terminal, our approach prioritises the long-term operational interests of the airport. We position ourselves as a “safe pair of hands” for complex baggage handling SCADA system integrations, ensuring that every line of bespoke code serves a practical, productive purpose. This methodical dedication to quality allows us to mitigate risks that larger, less agile organisations might overlook during high-stakes migrations.

Bespoke software engineering delivers superior operational outcomes by aligning the control layer perfectly with the physical constraints of the baggage hall. By focusing on the specific throughput requirements of your facility, we ensure that the supervisory system acts as a true enabler of efficiency rather than a bottleneck. This commitment to principled engineering creates a mood of stability and reliability, providing airport stakeholders with the confidence that their backbone operations are secure and optimised for future growth.

Airport-in-a-Box: A Scalable Solution

Central to our rapid deployment capability is the proprietary AIAB™ (Airport-in-a-Box) platform, which acts as a technical catalyst for system standardisation. This solution is designed to harmonise control across disparate baggage handling assets, providing a unified supervisory layer regardless of the underlying mechanical hardware or age of the existing PLCs. By deploying AIAB™, airports can significantly reduce deployment timelines without compromising on the rigorous testing protocols required for aviation safety. It offers the flexibility to integrate seamlessly with existing third-party BHS hardware, allowing for a phased transition during modernisation projects without the immediate need for a total mechanical overhaul.

Partnering for Long-Term Excellence

Our status as a Schneider Electric EAE Master Partner is a testament to our deep expertise in the IEC/BS 61499 standard and our commitment to the future of software-defined automation. This partnership allows us to deliver hardware-agnostic control systems that effectively bridge the divide between IT and OT, ensuring that your baggage handling SCADA system remains resilient against the next generation of technological shifts. We don’t just deliver a project and depart; we provide continuous optimisation through lifecycle management and principled engineering support that spans from RIBA Stage 1 through to Stage 5 and beyond. If you require an authoritative partner to oversee your next SCADA system design, we invite you to request a consultation with our specialist engineering team to discuss your specific operational requirements.

Securing the Future of Airport Operational Technology

The evolution of terminal logistics depends on the transition from reactive maintenance to a proactive, software-defined control architecture. By embracing the IEC 61499 standard and executing a methodical Siemens S5 to S7 migration, airports can eliminate the risks associated with obsolete hardware whilst significantly improving baggage tracking accuracy. A robust baggage handling SCADA system isn’t just a monitoring tool; it’s a strategic asset that requires disciplined engineering throughout the RIBA lifecycle to ensure peak performance.

As a Schneider Electric EAE Master Partner and specialists in Siemens S5 to S7 migration, AAC provides the technical foresight needed to manage these complex transitions. Our expertise in RIBA Stage 1-5 design ensures that every project is anchored in technical precision and operational reliability. Partnering with a specialist consultancy provides the stability required for high-stakes environments where failure isn’t an option. Consult AAC for Expert SCADA Integration and Migration to secure your terminal’s operational future.

Frequently Asked Questions

What are the main benefits of a SCADA system in baggage handling?

A baggage handling SCADA system provides the high-level supervisory oversight needed to coordinate motor states and diverter positions with passenger data. The primary benefits include enhanced operational visibility, rapid fault rectification through centralised alarm management, and the ability to generate detailed performance reports. By centralising data from thousands of field devices, operators can identify mechanical wear or throughput bottlenecks before they escalate into terminal-wide delays, ensuring a stable and predictable flow of passenger luggage.

How does IEC 61499 improve airport baggage system resilience?

The IEC/BS 61499 standard improves resilience by shifting from a centralised PLC model to a distributed intelligence architecture. This approach decouples software from specific hardware, allowing control logic to execute across multiple nodes. If a single controller fails, the remaining network continues to function, preventing a total system blackout. This event-driven methodology also ensures faster response times to mechanical shifts, which is essential for managing the high-speed sortation required in modern aviation hubs.

Is it possible to migrate from Siemens S5 to S7 without stopping airport operations?

Yes, a phased migration strategy allows for the transition from Siemens S5 to S7 hardware without halting terminal throughput. By conducting an audit and converting STEP 5 code in advance, engineers can replace individual PLC racks or conveyor segments during scheduled maintenance windows. Using hardware-in-the-loop simulation ensures that new code is validated before deployment, allowing for a seamless cutover that protects the airport’s On-Time Performance whilst mitigating the risks of legacy hardware failure.

What is the difference between RIBA Stage 4 and Stage 5 in SCADA design?

RIBA Stage 4 involves the technical design, where detailed software configurations and hardware specifications are finalised to meet the project’s requirements. Stage 5 marks the transition to manufacturing and commissioning, focusing on the physical installation and on-site testing of the control systems. Whilst Stage 4 is about creating the engineering blueprint, Stage 5 is the practical execution phase where systems undergo Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT) to ensure operational readiness.

Why should airports choose a specialist systems integrator over a generic software vendor?

Specialist integrators provide a “safe pair of hands” by understanding how bespoke control software must interface with complex, aging mechanical assets. Unlike generic vendors who offer rigid, one-size-fits-all products, a specialist systems integrator in aviation tailors the baggage handling SCADA system to the specific operational constraints of a terminal. This boutique approach ensures deeper integration with legacy PLCs and provides the technical agility required to handle unforeseen engineering challenges during high-stakes modernisation projects.

How does SCADA integration help with baggage misconnect rates?

Integration reduces baggage misconnect rates by providing the real-time tracking visibility mandated by IATA Resolution 753. By bridging the gap between low-level sensors and high-level sort allocation systems, the SCADA ensures that every bag is monitored at key induction and transfer points. This granular visibility allows for the immediate identification of “lost” bags or mechanical jams, enabling operators to intervene before a bag misses its flight connection or creates a system-wide backlog.

What is the Airport-in-a-Box (AIAB™) platform?

The AIAB™ (Airport-in-a-Box) platform is a proprietary solution developed to standardise control logic across disparate baggage handling assets. It enables rapid deployment of modern SCADA features by providing a pre-validated framework that integrates with various third-party hardware. This platform is particularly effective for airports looking to modernise their supervisory layer quickly without the extensive lead times associated with ground-up software development, whilst maintaining the high standards required for mission-critical airport operations.

How often should an airport SCADA system undergo an obsolescence audit?

Airports should conduct a comprehensive obsolescence audit every two to three years to align with rapid cycles in industrial computing and PLC lifecycles. For systems still reliant on Siemens S5 hardware, an immediate audit is mandatory given that manufacturer support ended in 2020. Regular assessments allow engineering teams to identify critical spare parts shortages and plan for phased migrations before hardware failure occurs, turning maintenance liabilities into strategic opportunities for system-wide performance optimisation.
